Loaders prefer dbt's manifest and catalog artifacts, then fall back to recursive SQL/YAML scanning instead of making the whole experience depend on a successful dbt parse.
dbt Feature Lineage
Lineage is useful when it explains the blast radius of a change, not only when it draws a graph.
Local-first dbt analysis for model dependencies, cross-model column lineage, change impact and query flow without a live warehouse.
- MANIFEST + STATIC2 MODES
- One normalized project modelManifest and compiled SQL are preferred when available; direct SQL and YAML analysis keeps the path useful without generated artifacts.
- NEXT.JS WEB APP5 VIEWS

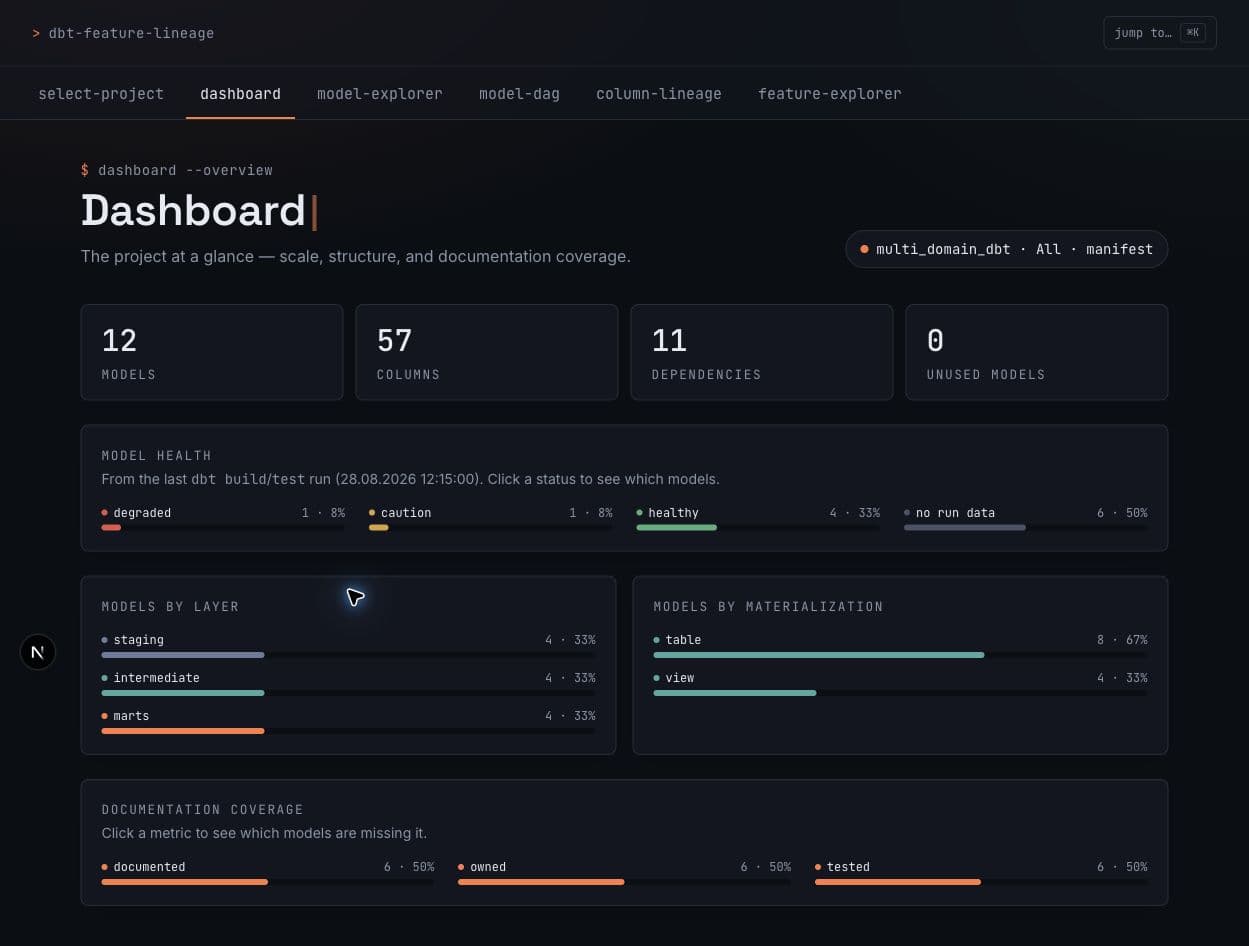

- One shared selection contextDashboard, Model Explorer, Model DAG, Column Lineage and Feature Explorer share the same project and model-group selection.
- DEMO STATIC PATHLOCAL ONLY
- No warehouse connection requiredThe demo project runs through static analysis, so the exploration loop stays local and the dbt project is not changed.
The problem
Make a dbt project explain itself.
A large dbt project can make a simple question expensive: where did this column come from, and what changes if I touch it? The answer is spread across model SQL, YAML metadata, joins, CTEs and indirect consumers.
This tool turns that repository structure into a local exploration loop. It reads the project, normalizes what it finds, then exposes the same representation to a CLI and an interactive UI.
Downstream analysis separates models that reference a column directly from the full transitive chain, giving review decisions a useful blast-radius boundary.
Typer and the FastAPI-backed Next.js web app consume shared domain models and services. The CLI and web app do not carry separate lineage logic that can drift apart.
The parsing strategy returns partial results with a warning when a query cannot be fully understood, making uncertainty visible rather than silently dropping a model.
Input boundary
Two inputs. One domain model.
The tool prefers the artifacts dbt already understands, but does not make artifact generation a hard prerequisite. Both paths converge before graph construction and user-facing analysis.
01
Manifest mode
target/manifest.json + catalog.jsonUses dbt's own dependency and compiled-SQL artifacts when they exist. `--generate-artifacts` can run `dbt parse` on demand.
02
Static mode
SQL + YAML on diskDiscovers model layers, sources, ref()/source() dependencies, output columns and SQL structures without executing macros or requiring a warehouse.
In both modes, `ref()` and `source()` dependencies are extracted, Jinja relations are replaced with SQL-safe placeholders, and the resulting SQL is parsed with sqlglot.
Product surface
From project scan to feature comparison.
The Next.js web app keeps the project and optional model-group selection stable while each view answers a different inspection question.

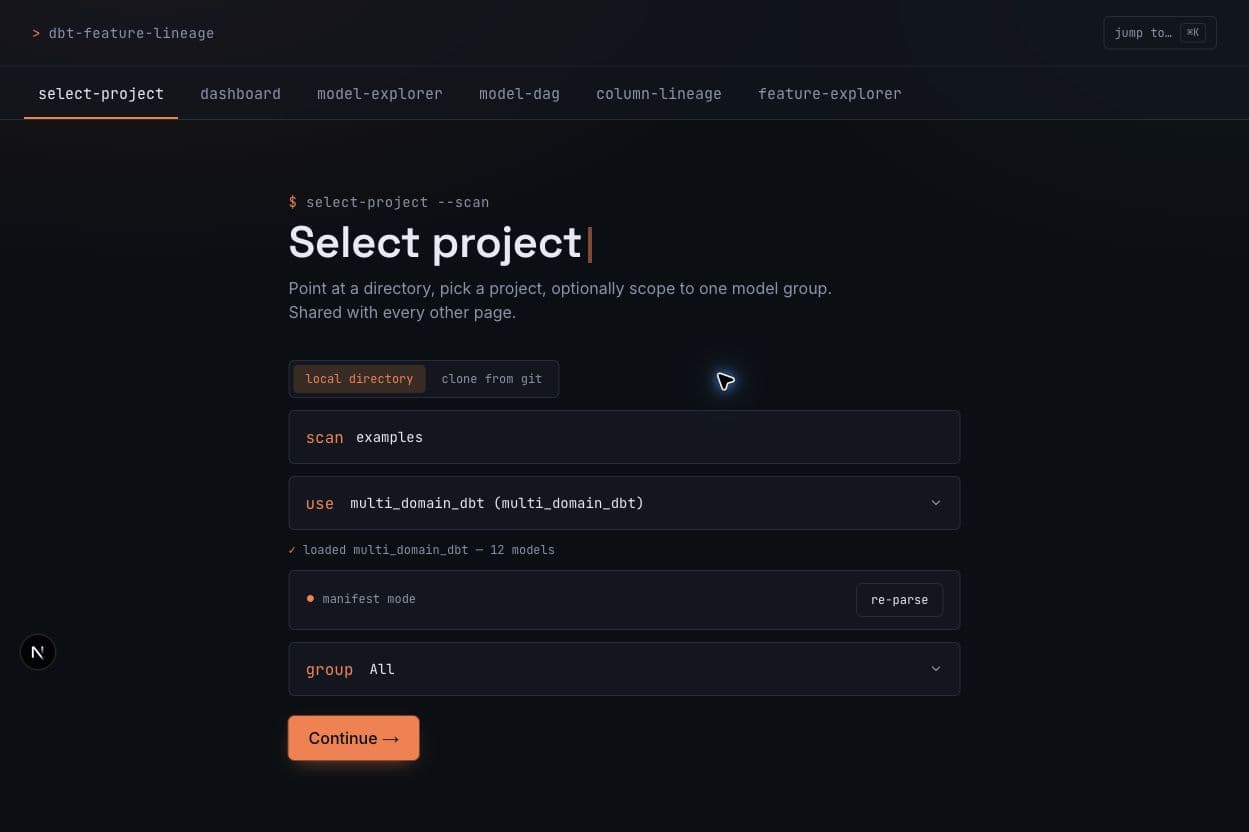

Select Project
Point at a local directory or clone from a git URL, choose a dbt project and optionally scope the app to a model group.
Model Explorer
Inspect one model through overview, query flow, columns and raw SQL views.

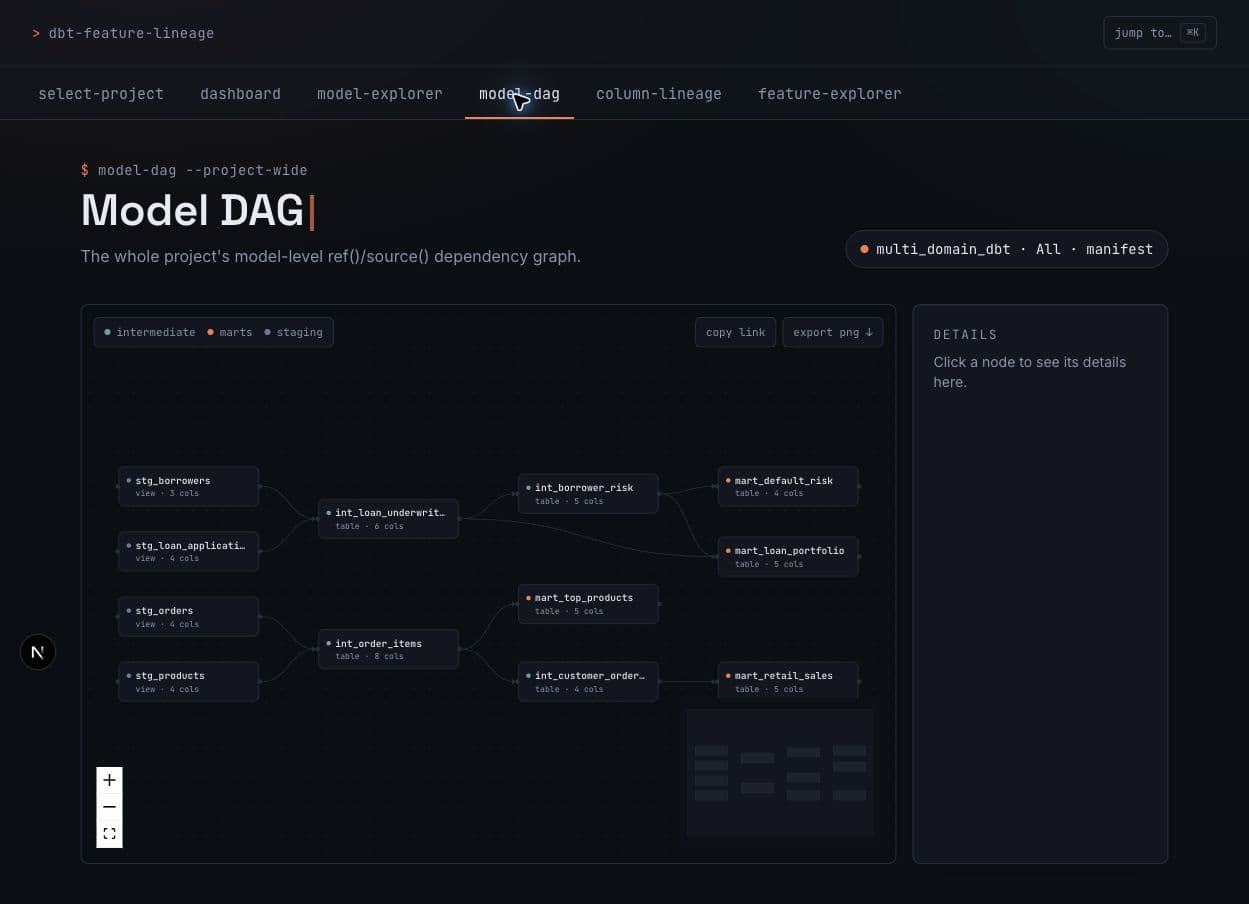

Model DAG
See model-level dependencies and inspect materialization, owner, tests, description and tags.

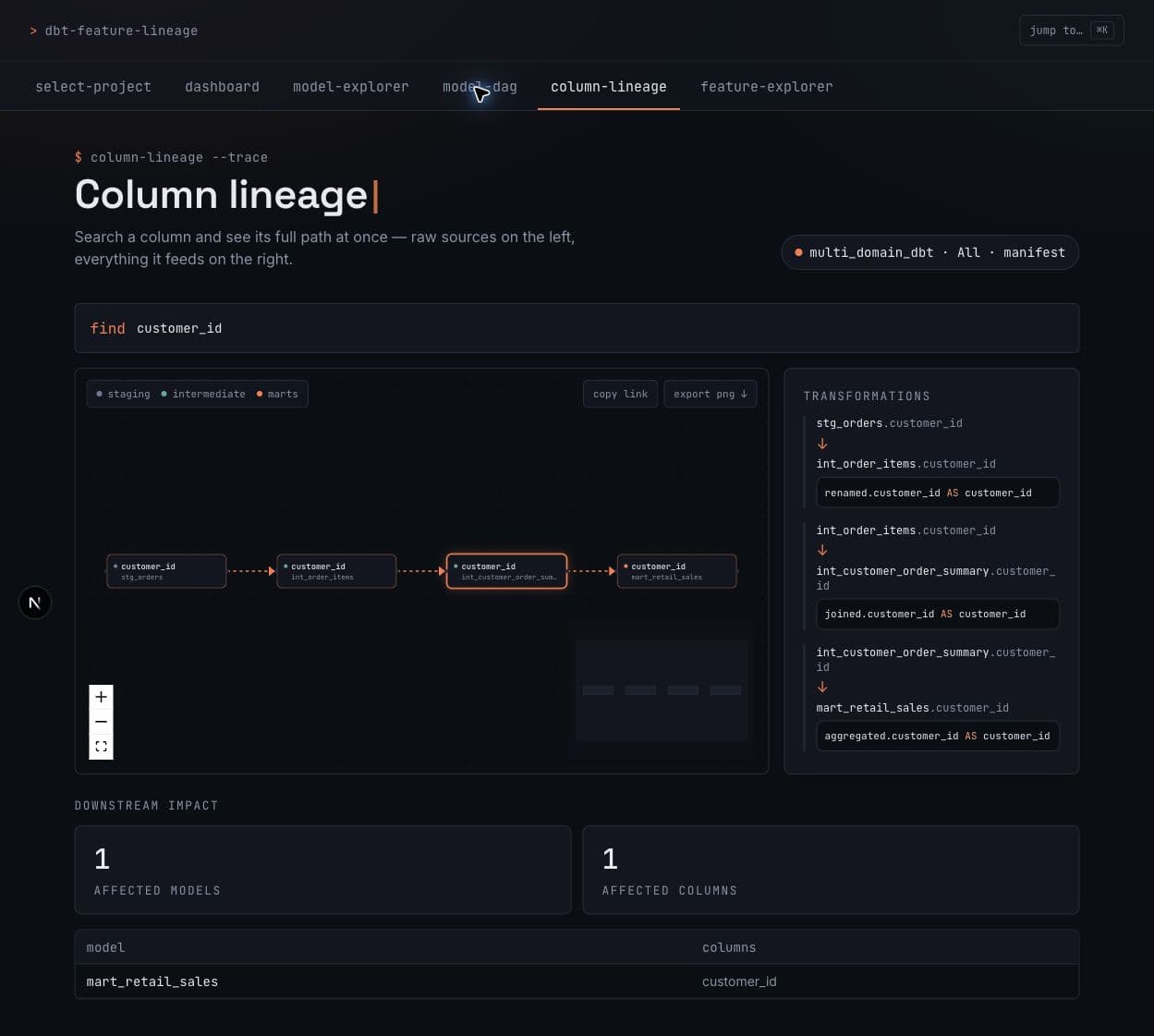

Column Lineage
Trace a column upstream to raw sources or downstream to consumers, with an impact summary for the latter.
Feature Explorer
Compare every model producing a given column name by layer, description, owner, tags and test count.
A global ⌘K command palette provides the fast path across models, columns and pages. Each selection is represented by a shareable query-string URL rather than client-only state.
Impact semantics
Direct and transitive impact stay separate.
A column change does not affect every downstream node in the same way. The downstream report groups the chain by model and preserves the distinction between a consumer that references the column and a model that inherits the change later in the graph.
| Question | Answer surface | Why it matters |
|---|---|---|
| Where did this column come from? | Upstream lineage | Walk joins, coalesces and renames back to raw sources. |
| Who consumes it directly? | Direct impact | Prioritize the models that reference the changed column themselves. |
| What inherits the change? | Transitive chain | See the complete downstream reach without treating every node as an equal review target. |
| Where is the same feature produced? | Feature Explorer | Compare model, layer, owner, description, tags and test count side by side. |
Architecture
Load once. Analyze everywhere.
Loaders resolve the project into shared domain models. Services then build model DAGs, column lineage, traces, impact summaries, query-flow steps and model health for both the Typer CLI and the FastAPI-backed Next.js web app.
Two inputs, one domain model
Artifact-first loading and static fallback expose the same project representation to every downstream analysis.
dbt project / git clone load Manifest Mode and Static Mode. Manifest Mode and Static Mode normalize Shared Domain Models.
- Boundarydbt project / git clonelocal checkout boundary
- ServiceManifest Modetarget/manifest.json · compiled SQLServiceStatic ModeSQL + YAML scanners / parsers
- PersistenceShared Domain Modelssame representation
Shared analysis services
CLI and the FastAPI-backed web app consume one service layer rather than reimplementing analysis in each interface.
Domain Models analyze Services. Services serve Typer CLI (human + JSON output). Services serve FastAPI → Next.js (JSON API + web app).
- PersistenceDomain Modelsmanifest or static
- AnalyzerServicesshared analysis layer
- Dashboard + health
- Model DAG
- Column lineage
- Impact + exposures
- Query flow
- ClientTyper CLIhuman + JSON outputClientFastAPI → Next.jsJSON API + web app
Architecture notes
- Manifest and static analysis normalize into the same domain models.
- Typer and the FastAPI-backed Next.js app share one service layer; analysis logic is not duplicated between interfaces.
- The demo and static-analysis path require no live data warehouse connection, and git imports are handled through the local clone boundary.
Design decisions
The system keeps uncertainty visible.
Normalize before analyzing
Manifest-aware and static loading resolve into the same domain representation. Every graph, trace and query-flow view can therefore stay ignorant of where the project came from.
Keep analysis outside the presentation layer
The service layer builds schema and lineage graphs, model DAGs, column search, query-flow steps, impact summaries and model health. Typer and the FastAPI backend remain thin adapters over that behavior, with Next.js handling presentation.
Treat parsing uncertainty as product state
The parser handles Jinja relations through SQL-safe placeholders and reports partial results when a query is not fully parseable. A warning is more useful than a confident blank screen.
Product proof
See the working surface, not just the architecture.
These screenshots come from the repository's current Next.js walkthrough. Each image links back to its original GitHub file so the full-size source remains available on desktop and mobile.
Reproducible path
Short path from clone to inspection.
The repository documents a Docker-first development loop. Build the image, run the test suite, start the FastAPI backend, then run the Next.js frontend against the included sample project.
make build
make test
make api
make web
dbt-feature-lineage analyze examples/sample_banking_dbt
dbt-feature-lineage lineage examples/sample_banking_dbt customer_id --direction downstream --impactRelease historyv0.1 → v0.8 complete
Core input, lineage, impact, visualization and explorer milestones are marked complete in the repository roadmap.
Quality loopBuild · test · lint
Docker, pytest and Ruff are first-class Makefile commands in the documented development path.
Stack
Small surface, clear responsibilities.
BackendPython 3.12 · FastAPI · Typer · Uvicorn
Analysisdbt Core · sqlglot · NetworkX · Jinja2 · PyYAML · Pydantic
FrontendNext.js · TypeScript · Tailwind CSS · React Flow
DeliveryDocker · Docker Compose · Make
Qualitypytest · Ruff
Limits
Useful because the boundary is explicit.
This is a local exploration tool, not a replacement for dbt Cloud, observability or a transformation engine. The repository is direct about where analysis can diverge from a fully compiled project.
- No dbt Cloud, Airflow or warehouse integration.
- Private git imports rely on the host's configured credential helper or SSH agent; the app does not store tokens.
- Complex custom macros may not parse correctly.
- Static analysis can differ from compiled dbt SQL when no manifest is available.
- Projects that depend on generated or unavailable files may produce incomplete analysis.
